1 . 3 Inch 128 * 64 SPI I2C Interfaces OLED Wearable LCD Display With Controller SSD1306

Product Categories
Shenzhen Ok Smart-Lcm Photoelectric Co., Ltd.
Contact Now

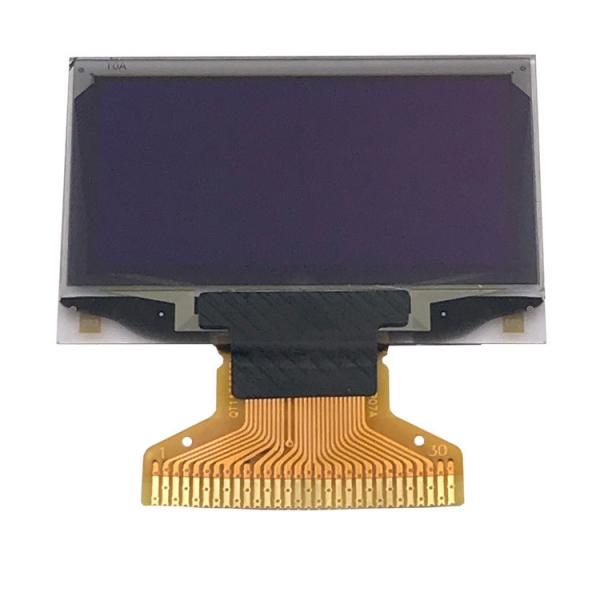

1 . 3 Inch 128 * 64 SPI I2C Interfaces OLED Wearable LCD Display With Controller SSD1306

  • 1
  • 2

Brand Name : OKSMART

Model Number : OKP12864 - 05

Certification : SGS

Place of Origin : Shenzhen China

MOQ : 3000

Price : usd 3 . 0 - 4 . 0 piece

Payment Terms : T / T , trade assruance , Western Union , L/C , D/A , D/P , MoneyGram

Supply Ability : 10000 pieces per month

Delivery Time : 1 - 30 working days

Packaging Details : Cartons , Capboard , EPE , Blister Tray . About how many products in one package , it is up to the size of products.

Outline Drawing : According to the annexed outline drawing

Number of Pixels : 128 X 64

Panel Size : 34 . 5 x 23 . 0 x 1 . 4 ( mm )

Viewing angle : greater than 160 degrees

Contact Now

1.3 inch SPI 128 * 64 SPI I2C Interfaces OLED ith controller SSD1306

Oled display Widely used in the industrial application such as Ammeter , currency detector , electronic scals , measuring instrument , vehicle-mounted,water meter and medical instrumentatior , with the Drive IC SSD1306 ,

The display makes its own light , no backlight is required . This reduces the power required to run the OLED and is why the display has such high contrast , extremely wide viewing angle and extremely operating temperature .

The fpc is the soldering type , no need connector . Just solder the FPC on your PCB directly .

Pixel Pitch 0.23 x 0.23 ( mm ) Pixel Size 0.21 x 0.21 ( mm )
Color White Interface

8 - bit 68XX / 80XX Parallel

4-wire SPI , I2 C
General Tolerance ± 0 . 30 Weight 2 .18 ( g )

1 . 3 Inch 128 * 64 SPI I2C Interfaces OLED Wearable LCD Display With Controller SSD1306

Our factory

1 . 3 Inch 128 * 64 SPI I2C Interfaces OLED Wearable LCD Display With Controller SSD1306

FAQ

1. When you ship my order?

A Normally 30-45days after receiving your payment, but it can be negotiated based on order qty and production schedule.

2. How about the quality guarantee period?

A One year!


Product Tags:

wearable lcd screen



fstn lcd display


Quality 1 . 3 Inch 128 * 64 SPI I2C Interfaces OLED Wearable LCD Display With Controller SSD1306 for sale

1 . 3 Inch 128 * 64 SPI I2C Interfaces OLED Wearable LCD Display With Controller SSD1306 Images
